Lesson 3. Remote Sensing to Study Wildfire

Learning Objectives

At the end of this lesson, you will be able to:

  • Explain how scientists use remote sensing to study wildfire impacts.
  • List two primary vegetation indices that are used to study wildfire impacts.
  • List four primary sources of remote sensing data that can be used to study wildfire.

What You Need

You will need a computer with internet access to complete this lesson.

Use Remote Sensing Data to Understand Fire Impacts

Remote sensing data are often used to study fires. Remote sensing data, collected from satellites and airplanes, allow you to gather information about the landscape over time. Data collected from satellites like Landsat and MODIS are freely available and collected regularly across the globe.

Since remote sensing data are collected over time, they can be used to, among other things:

  • Track changes in vegetation.
  • Understand the area and intensity of fires.
  • Monitor the post-fire vegetation dynamics of burned areas.

Remote Sensing Derived Vegetation Indices to Understand Fire Impacts

Vegetation indices can be useful tools for quantifying and visualizing the before and after effects of wildfire. They are calculations performed on specific spectral bands of remotely sensed imagery to accentuate a particular vegetation characteristic. They can be used for anything from understanding disasters like floods or fires to deciding when to irrigate crops.

To calculate a vegetation index, you will need access to specific imagery bands across the electromagnetic spectrum; in other words, you will need access to satellite imagery with a certain spectral resolution.

Normalized Difference Vegetation Index (NDVI)

The normalized difference vegetation index (NDVI) is a vegetation index that is used to measure the greenness of the area. For the purpose of studying wildfires like the Cold Springs Fire, it allows you to visualize and quantify vegetation health before and after the fire.

Further, you can use NDVI to track the rate of vegetation growing back in a burned area over time. This can tell you the speed of ecosystem recovery. In this course, you will learn how to calculate NDVI and create images like those below using Python.

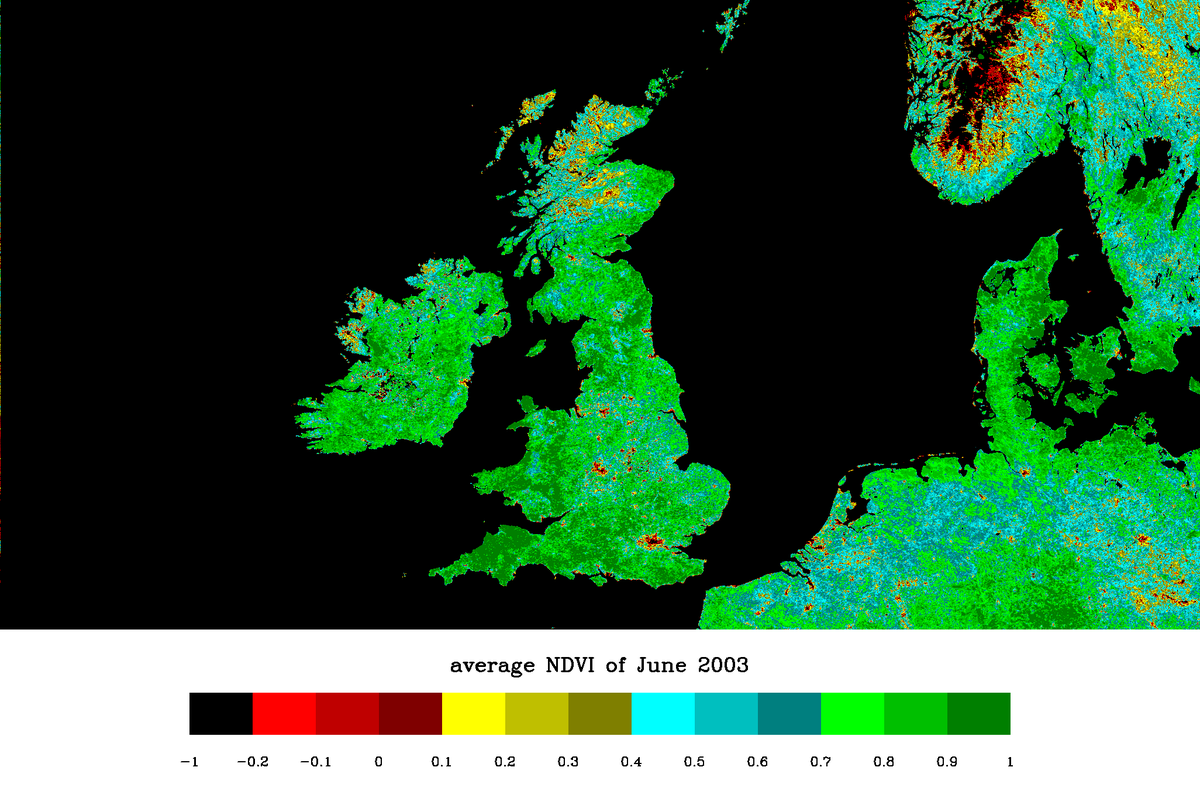

Remote sensing NDVI example image.
In this NDVI image, the darker green areas have the most lush vegetation while the yellow and red areas lack vegetation. Source: Wikipedia.

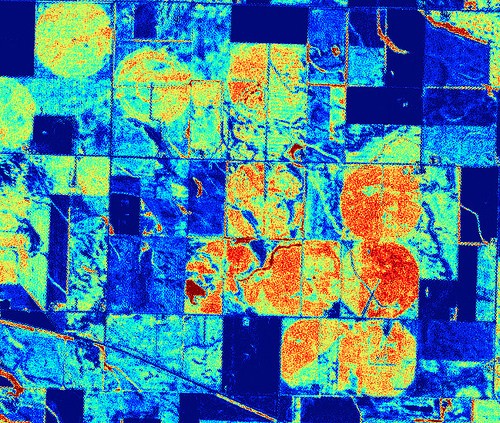

Remote sensing NDVI example image of an agricultural field.
In this NDVI image of agricultural fields, red areas signify healthier vegetation. Source: Mapbox.

Normalized Burn Ratio (NBR)

The normalized burn ratio (NBR) is another vegetation index that allows you to visualize burned areas to understand fire severity. To use NBR to understand wildfire, you can perform the calculation on a remotely sensed image taken prior to the fire and on another taken after, and then calculate the difference between the two.

This difference image is called a dNBR (difference NBR) image. The images below show an example of an dNBR image for the Cold Springs Fire. In this course, you will learn how to perform these calculations and create these images using Python.

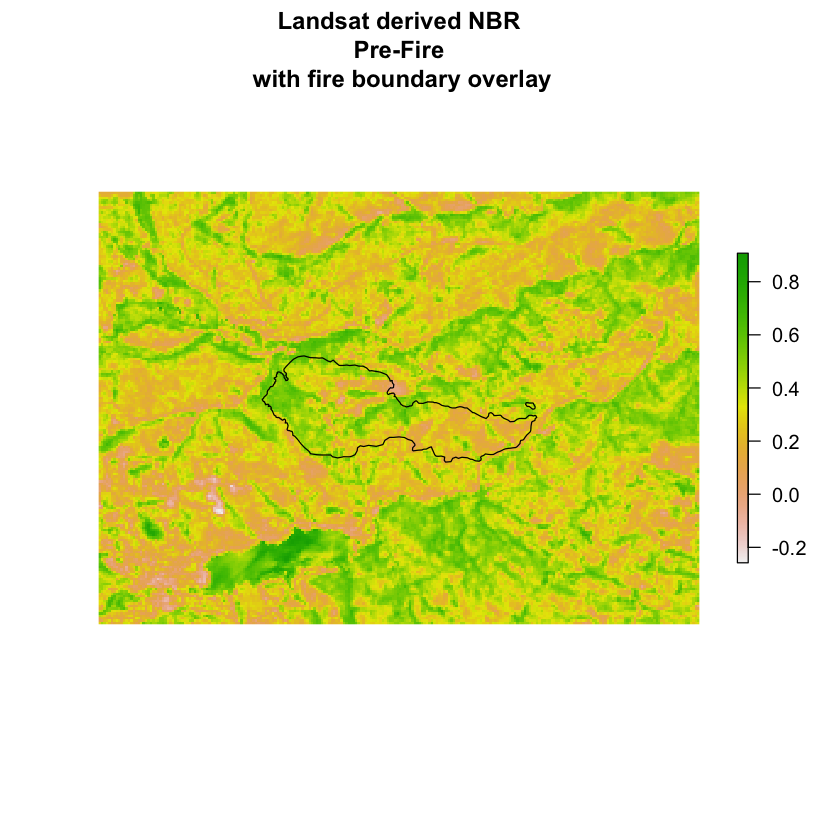

Image of the NBR of the Cold Springs fire site prior to the wildfire.
This image shows the NBR of the site of the Cold Springs Fire prior to the fire with a boundary overlay of the fire extent. Source: Megan Cattau.

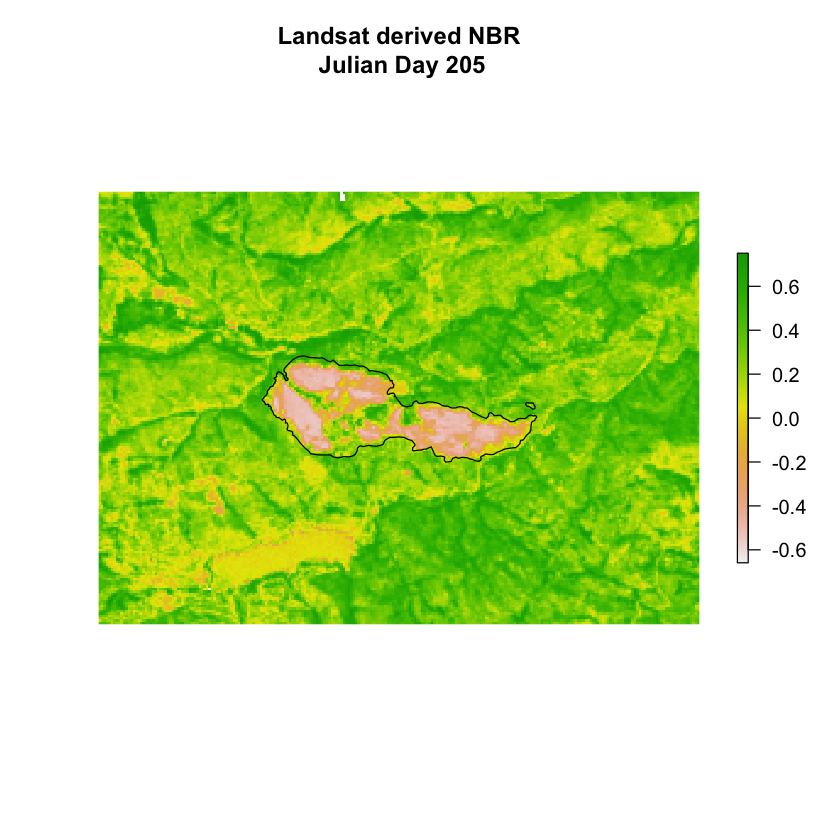

Image of the NBR of the Cold Springs fire site after the wildfire.
This image shows the NBR of the site of the Cold Springs Fire after the fire with a boundary overlay of the fire extent. Source: Megan Cattau.

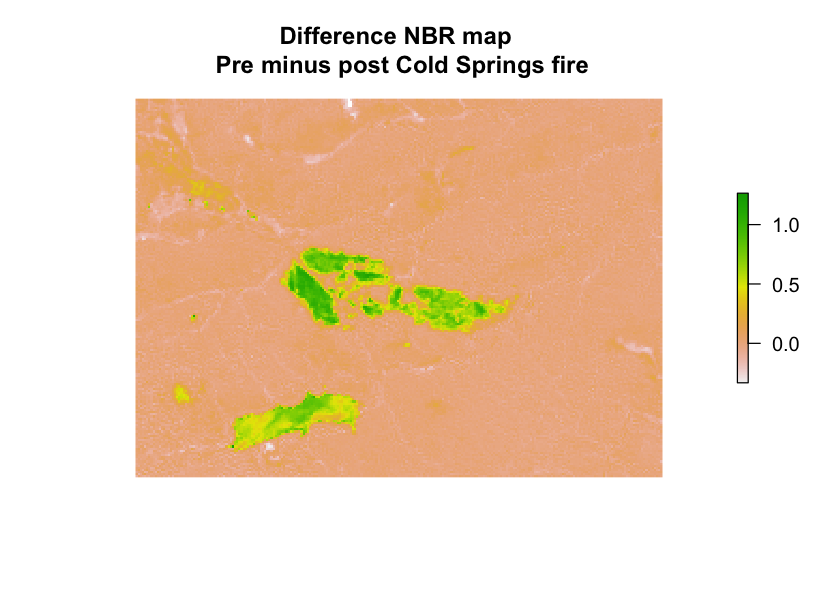

Image of the dNBR of the Cold Springs fire site.
This dNBR image of the Cold Springs Fire site was calculated with the above before and after images from the fire site. Source: Megan Cattau.

Where to Find Remote Sensing Data

There are many different free and proprietary sources of remote sensing data. In this course, you will learn how to use the following types of satellite data to understand fire impacts:

Each one of these data sets have different spatial and temporal resolutions.

Data SourceSpatial ResolutionTemporal ResolutionSpectral Resolution
NAIPTypically 1m (only in US)Every few years3-4 bands
MODIS250m, 500m, 1000m (depending on the band)Daily, 8 day, 16 day, Monthly, Quarterly, Yearly (Depending on the product)36 bands
Landsat 830m16 days11 bands
Sentinel-210m, 20m, 60m (depending on the band)5 days12 bands
